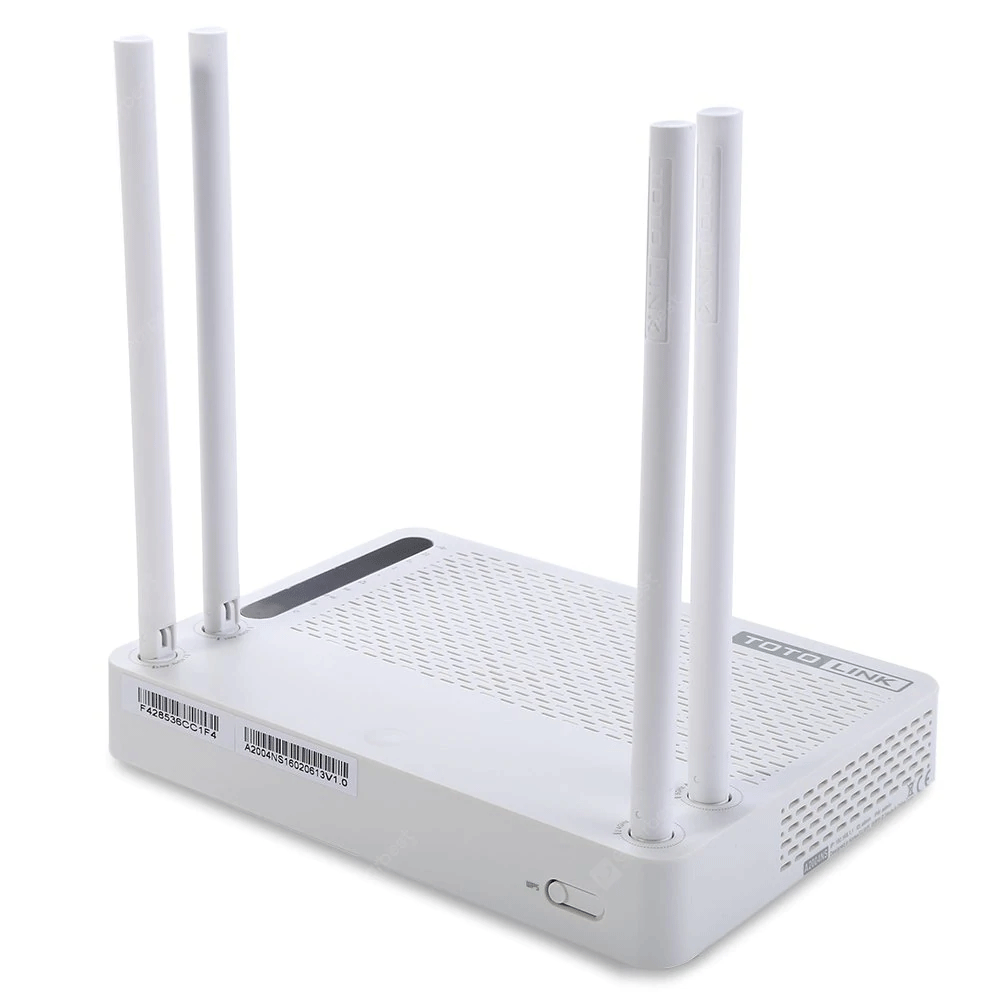

Totolink AC1200 Wireless Dual Band Gigabit Router with USB Port(A2004NS)
EXTREMELY HIGH SPEED EXPERIENCE
A2004NS adopts the next generation 802.11ac technology and offers wireless speed up to 1167Mbps, optimized for music, HD video and online gaming.
SIMULTANEOUS DUAL BAND
With 2.4GHz (300Mbps) and 5GHz (867Mbps) working concurrently, A2004NS ensure high stability, less interference and high data rate for wireless connections.
MULTI-FUNCTION USB 2.0 PORT
With a USB 2.0 port, A2004NS can be used as a FTP server, Samba server or URL server while connected to a NAS(Network attached storage); or be used as a charger while connected to smart phone or tablets.
FIVE GIGABIT PORTS FOR SUPERIOR DATA TRANSFER
A2004NS provides one gigabit WAN port and four gigabit LAN ports for ultrafast wired network.
HEAT-DISSIPATION DESIGN
New cooling design supports long-term operation with high reliability and makes the device look more beautiful.
MULTIPLE WIRELESS NETWORK FOR ACCESS CONTROL
Multi-SSID function can isolate one wireless network to several different WiFi spots for security and good access management.
VPN(VIRTUAL PRIVATE NETWORK) FOR REMOTE INFORMATION SHARING
Based on PPTP protocol, 5 VPN tunnels are provided to secure remote access. It not only protects your data privacy, but also is convenient for networking.
OUTSTANDING BANDWIDTH CONTROL WITH QOS
Intelligent QoS efficiently improves the bandwidth utilization and is better for network priority control.
- Complies with 802.11ac/a/b/g/n standards.
- Simultaneous 2.4GHz 300Mbps and 5GHz 867Mbps.
- Equipped with four high gain antennas.
- Adopts advanced MIMO technology.
- Supports PPPoE, DHCP and Static IP broadband functions.
- Provides five Gigabit Ethernet Ports.
- Provides Multiple SSID and QoS function.
- Provides 64/128-bit WEP, WPA, WPA2 and WPA-Mixed security.
- Connects to secure network easily and fast using WPS.
- Supports IP, MAC, URL filtering and Port Forwarding.
- Supports universal repeater and WDS function.
- Provides a multi-functional USB2.0 port.
- The VPN server can not only protect the privacy of your information, but also simplify network management.
ADDITIONAL
GENERAL
| BRAND |
TOTO LINK |
|---|
| MODEL |
A2004NS |
|---|
| COLOR |
White |
|---|
| TYPE |
Wireless Routers Without Modem |
|---|
| CONTROLS |
1 *WPS Button
1 *RST Button |
|---|
| LED INDICATOR |
1 *Power, 1 *CPU, 1 *2.4G Wireless, 1 *5G Wireless, 1 *WAN, 4 *LAN, 1*USB |
|---|
| FREQUENCY |
2.4GHz/5GHz |
|---|
| POWER SUPPLY |
12V DC/2A |
|---|
| OTHER FEATURES |
WAN Type: PPPoE/DHCP/Static IP |
|---|
| PRODUCT DIMENSIONS |
182.3 x 133.8 x 25.9 mm |
|---|
| WEIGHT |
725 g |
|---|
SUPPORT PROTOCOLS
| STANDARD FEATURES |
IEEE |
|---|
| STANDARD IEEE |
IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a |
|---|
WIRELESS FEATURES
| SIGNAL RATE |
2.4GHz: Up to 300Mbps
5GHz: Up to 867Mbps |
|---|
| EIRP |
2.4GHz < 20dBm
5GHz < 23dBm |
|---|
| OTHER FEATURES |
Channels: 2.4GHz: 1-11 (North America), 1-13 (General Europe), 1-14 (Japan) / 5GHz: 36~165
Reception Sensitivity
2.4G: 11b: <-79dbm / 11g: <-68dbm / 11n: HT20<-65dbm HT40: <-61dbm
5G: 11a:<-68dbm / 11ac: HT20<-65dbm HT40: <-61dbm HT80: <-51dbm
Wireless Functions: Multiple SSID, Wireless Bridge, MAC Authentication, WDS, WPS,Wireless Scheduler
NAT / Routing: Port Forwarding, DMZ/Twin IP, Port Trigger |
|---|
CONNECTIVITY
| ANTENNA |
Internal |
|---|
| NO. OF USB PORTS |
1 |
|---|
| NUMBER OF LAN PORTS |
4 |
|---|
| NUMBER OF WAN PORTS |
1 |
|---|
| WAN |
10/100/1000Mbps WAN Port |
|---|
| LAN |
10/100/1000Mbps LAN Ports |
|---|
| NUMBER OF ANTENNAE |
4 |
|---|
| ANTENNAE CAPACITY |
2 *5dBi Fixed Antennas(2.4GHz ), 2 *5dBi Fixed Antennas(5GHz ) |
|---|
SECURITY
| ENCRYPTION |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) |
|---|
| FIREWALL |
Internet Access Control: IP/MAC Address filtering
Net Detector |
|---|
ADDITIONAL FEATURES
| VPN |
Yes |
|---|
| OTHER FEATURES |
Utility: VPN, DDNS, WOL, Host Scan, IPTV
Traffic: QoS, Connection Control
System: System Log, Admin Setup, Firmware Upgrade, System Time, Config Backup and Restore
USB Storage: FTP Service, Samba Service, URL Service |
|---|
SALES PACKAGE
| IN THE BOX |
A2004NS Wireless Router *1
Power Adapter *1
Ethernet Cable *1
Quick Installation Guide *1 |
|---|
| WEIGHT |
1.2000 |
|---|
WARRANTY
| WARRANTY PERIOD |
2 Year Manufacturer Warranty |
|---|
)
